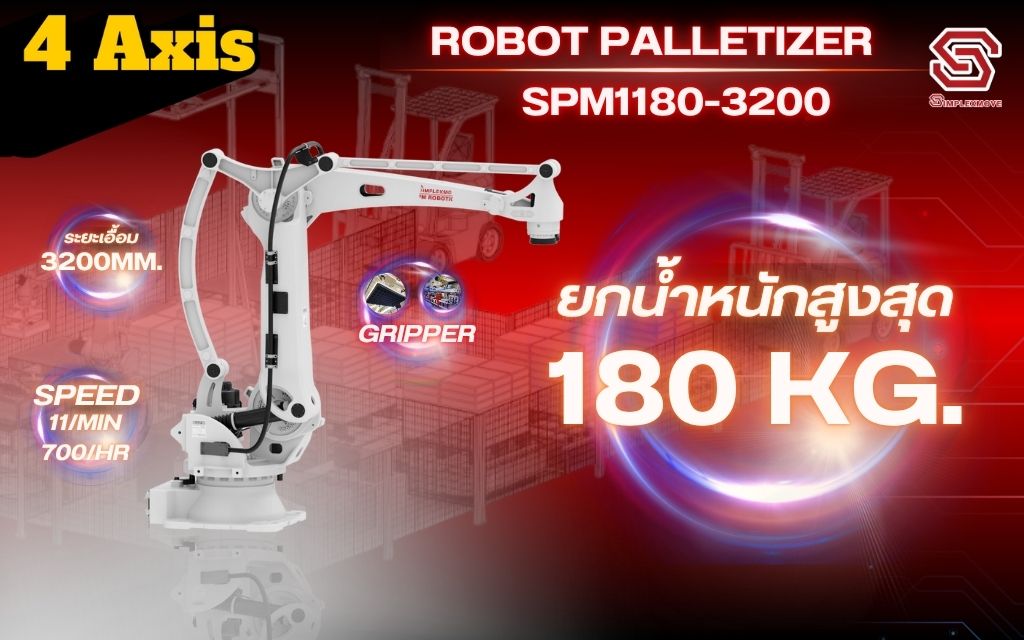

ROBOT Palletizer SPM1180M-3200mm 4Axis
ROBOT Palletizer SPM1180M-3200 4Axis
Robot SPM1180M-3200 4Axis ยกน้ำหนักปลายแขนได้มากสุด 180kg ระยะเอื้อม 3200mm ความเร็ว 11 รอบ/นาที
Industrial robot
Wrist can handle a load of 180kg, with a working radius of 3200mm
Specifications
Robot SPM1180M-3200 4Axis ยกน้ำหนักปลายแขนได้มากสุด 180kg ระยะเอื้อม 3200mm ความเร็ว 11 รอบ/นาที
Industrial robot
Wrist can handle a load of 180kg, with a working radius of 3200mm
Specifications
| Model | SPM1180M-3200 |
| Type | Vertical joint with 4 degrees of freedom |
| Payload | 180KG |
| Working radius | 3200mm |
| Position repetition accuracy | ±0.02mm. |
| Body weight | 1150KG |
| Power capacity | 11KVA |
| Installation method | ground |
| Protection level | Equivalent to IP54 |
| Applicable environment | 0-45° C, 20-80%RH (No condensation phenomenon) |
| Main uses | Handling, palletizing, loading and unloading |
| Action range | ||
| Basic axis | J1 | ±180° |
| J2 | -41° +90° | |
| J3 | -17° +115° | |
| Arm axis | ||
| J4 | ±360° | |
| Maximum speed | ||
| Basic axis | J1 | 100° /S |
| J2 | 95° /S | |
| J3 | 104° /S | |
| Arm axis | ||
| J4 | 290° /S | |
